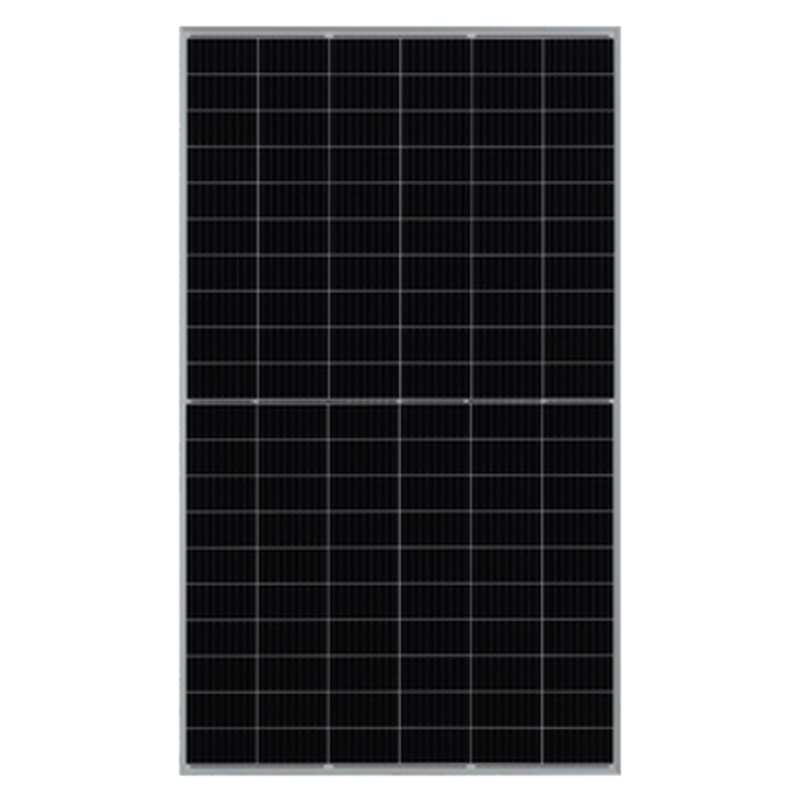

JA 390W MBB Half-Cell Module JAM60S20 365-390/MR asdfasdfafds-KMB Star

asdfasdfafds JA 390W MBB Half-Cell Module JAM60S20 365-390/MR

ELECTRICAL PARAMETERS AT STC

TYPE	JAM60S20 -365/M R	JAM60S20 -370/M R	JAM60S20 -375/MR	JAM60S20 -380/M R	JAM60S20 -385/M R	JAM60S20 -390/MR
Rated Maximum Power(Pmax) [W]	365	370	375	380	385	390
Open Circuit Voltage(Voc) [V]	41.13	41.30	41.45	41.62	41.78	41.94
Maximum Power Voltage(Vmp) [V]	33.96	34.23	34.50	34.77	35.04	35.33
Short Circuit Current(lsc) [A]	11.30	11.35	11.41	11.47	11.53	11.58
Maximum Power Current(lmp) [A]	10.75	10.81	10.87	10.93	10.99	11.04
Module Efficiency [%]	19.6	19.9	20.2	20.4	20.7	21.0
Power Tolerance			0-+5W
Temperature Coefficient of Isc(ajsc)			+0.044%/°C
Temperature Coefficient of Vbc(0_Voc)			-0.272%/°C
Temperature Coefficient of Pmax(v_Pmp)			-0.350%/°C

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.

ELECTRICAL PARAMETERS AT NOCT							OPERATING CONDITIONS
TYPE	JAM60S20 -365/M R	JAM60S20 -370/MR	JAM60S20 -375/MR	JAM60S20 -380/M R	JAM60S20 -385/MR	JAM60S20 -390/MR	Maximum System Voltage	1000V/1500V DC
Rated Max Power(Pmax) [W]	276	280	284	287	291	295	Operating Temperature	-40°C~+85°C
Open Circuit Voltage(Voc) [V]	38.41	38.65	38.89	39.14	39.38	39.63	Maximum Series Fuse Rating	20A
Max Power Voltage(Vmp) [V]	32.05	32.30	32.55	32.72	32.96	33.20	Maximum Static Load,Front	5400Pa (112lb/ft²)
Short Circuit Current(lsc) [A]	9.15	9.20	9.25	9.30	9.35	9.40	Maximum Static Load,Back	2400Pa (50 lb/ft²)
Max Power Current(lmp) [A]	8.61	8.66	8.71	8.78	8.83	8.88	NOCT	45±2°C
NOCT		Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G					Safety Class Fire Performance	Class H UL Type 1
