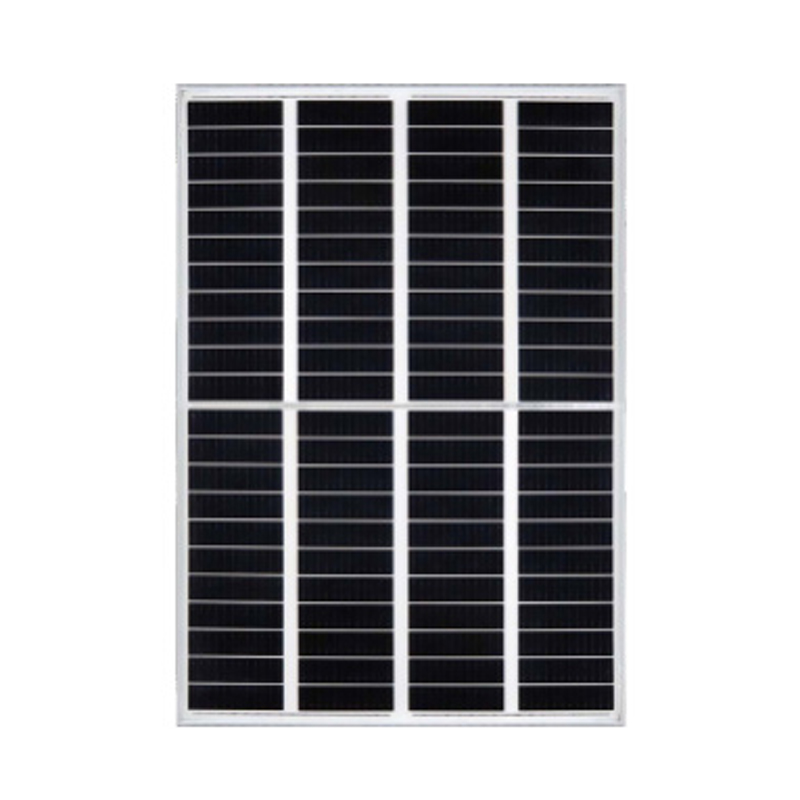

Canadian Solar Panel KuPower Mono Mono PERC 210 W ~ 230 W CS6A-210 |215 |220 |225 |230P-PLUS asdgdfhfgh566-KMB Star

asdgdfhfgh566 Canadian Solar Panel KuPower Mono Mono PERC 210 W ~ 230 W CS6A-210 |215 |220 |225 |230P-PLUS

ELECTRICAL DATA | STC*

CS6A-210/215/220/225/230P-PLUS

Nominal Max. Power (Pmax)	210 W 215 W 220 W 225 W 230 W
Opt. Operating Voltage (Vmp)	24.5 V 24.7 V 24.9 V 25.1 V 25.3 V
Opt. Operating Current (Imp)	8.58 A 8.71 A 8.84 A 8.97 A 9.10 A
Open Circuit Voltage (Voc)	29.7 V 29.9 V 30.1 V 30.3 V 30.5 V
Short Circuit Current (Isc)	9.17 A 9.23 A 9.29 A 9.42 A 9.56 A
Module Eﬃciency	16.2% 16.5% 16.9% 17.3% 17.7%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1000V (IEC/UL) or 1500V (IEC/UL)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL61730 1000V) or Class C (IEC 61730)
Max. Series Fuse Rating	20 A
Application Classification	Class A
Power Tolerance	0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.

ELECTRICAL DATA | NMOT*

CS6A-210/215/220/225/230P-PLUS

Nominal Max. Power (Pmax)	158 W	161 W	165 W	169 W	173 W
Opt. Operating Voltage (Vmp)	23.0 V	23.2 V	23.3 V	23.5 V	23.7 V
Opt. Operating Current (Imp)	6.86 A	6.96 A	7.07 A	7.17 A	7.27 A
Open Circuit Voltage (Voc)	28.1 V	28.3 V	28.5 V	28.6 V	28.8 V
Short Circuit Current (Isc)	7.39 A	7.44 A	7.49 A	7.60 A	7.71 A
