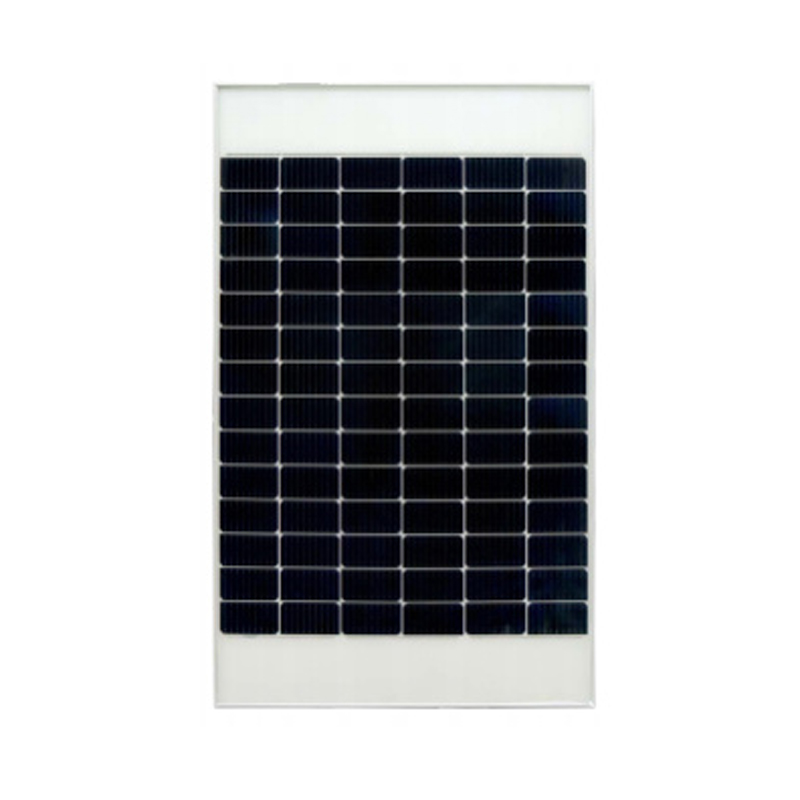

Canadian Solar Panel KuPower Mono PERC 250 W ~ 270 W CS5P-250 |255 |260 |265 |270M-PLUS dsfas2353453456-KMB Star

dsfas2353453456 Canadian Solar Panel KuPower Mono PERC 250 W ~ 270 W CS5P-250 |255 |260 |265 |270M-PLUS

ELECTRICAL DATA | STC*

CS5P-250/255/260/265/270M-PLUS

Nominal Max. Power (Pmax)	250 W 255 W 260 W 265 W 270 W
Opt. Operating Voltage (Vmp)	47.2 V 47.4 V 47.6 V 47.8 V 48.0 V
Opt. Operating Current (Imp)	5.30 A 5.39 A 5.47 A 5.55 A 5.63 A
Open Circuit Voltage (Voc)	56.9 V 57.1 V 57.3 V 57.5 V 57.7 V
Short Circuit Current (Isc)	5.66 A 5.74 A 5.82 A 5.90 A 5.98 A
Module Eﬃciency	14.7% 15.0% 15.3% 15.6% 15.9%
Operating Temperature	-40°C ~ +85°C
Max. System Voltage	1000V (IEC/UL) or 1500V (IEC/UL)
Module Fire Performance	TYPE 1 (UL 61730 1500V) or TYPE 2 (UL61730 1000V) or Class C (IEC 61730)
Max. Series Fuse Rating	15 A
Application Classification	Class A
Power Tolerance	0 ~ + 10 W
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell tempe- rature of 25°C.

ELECTRICAL DATA | NMOT*

CS5P-250/255/260/265/270M-PLUS

Nominal Max. Power (Pmax)	188 W	191 W	195 W	199 W	203 W
Opt. Operating Voltage (Vmp)	44.2 V	44.4 V	44.6 V	44.8 V	45.0 V
Opt. Operating Current (Imp)	4.24 A	4.30 A	4.37 A	4.44 A	4.50 A
Open Circuit Voltage (Voc)	53.8 V	54.0 V	54.2 V	54.3 V	54.5 V
Short Circuit Current (Isc)	4.56 A	4.63 A	4.69 A	4.76 A	4.82 A
