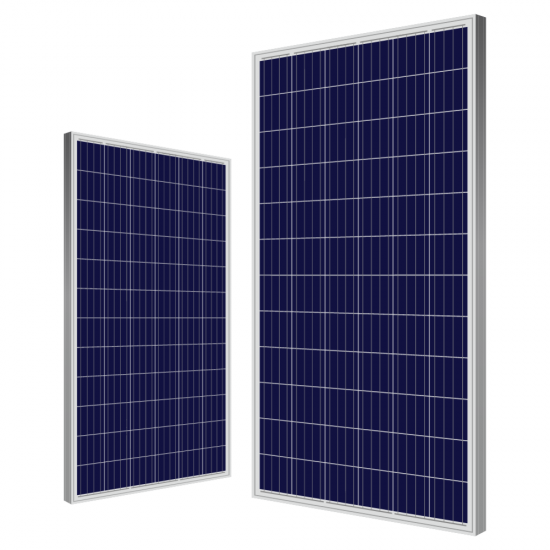

96 Cells 500w Single polycrystalline solar panel sdfasdf232333-KMB Star

sdfasdf232333 96 Cells 500w Single polycrystalline solar panel

Product Name: Polycrystalline solar panels 96 cells

Poly Solar Panel Features

1. High power output and highest conversion efficiency of 19.5%

2. Outstanding performance in low-light irradiance environments

3. Anti-reflective and anti-soiling surface reduces power loss from dirt and dust

4. Applied for on grid solar system ,off grid solar system,and hybrid solar system

5. 25 years for 80% of warranted minimum power output about polycrystalline silicon solar panels

Mechanical Parameters

Cell(mm)	Poly 5BB 156*156
Connector	MC4 Compatible
Glass Thickness	4/3.2 mm
Dimensions(LWH)(mm)	1956131050
Cable Cross Section Size (m㎡)	4
No.of Cells and Conections	96(8*12)
Junction Box	IP67.Rated

Electrical Parameters

Module	SW420P-96	SW440P-96	SW450P-96	SW460P-96	SW480P-96
Vmp	46.92V	47.69V	47.88V	48.01V	48.35V
Imp	8.95A	9.23A	9.40A	9.59A	9.93A
Voc	58.22V	58.47V	58.57V	58.75V	58.89V
Isc	9.47A	9.65A	9.73A	9.78A	10.04A
Efficiency(%)	16.41%	17.19%	17.56%	17.95%	18.73%
