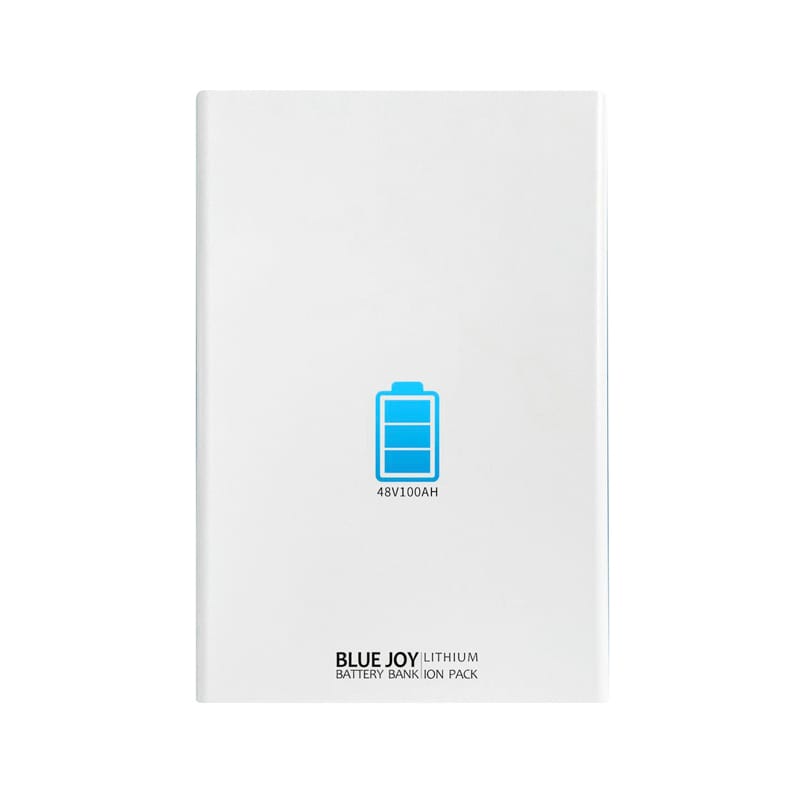

48V 100AH lithium-ion battery pack, built-in BMS

Technical Parameters

Model: BJ48-100

Rated voltage: 51.2V

Standard capacity: 100Ah

Continuously use input current: 80A

Continuously use output current: 80A

Charging voltage: 57.6V-60V

Cut-off: 2.5V single cell

Self-Discharge(  25℃): <3%/month

Depth of discharge: Up to 95%

Charge method ( CC/CV ):Operation: -20℃—70℃;

Recommendation: 10℃—45℃

Cycle life: 6000 times

Warranty: 5years

Size : 673*468*166mm

New BYD LiFePO4 cell

Electrical Characteristics

Float charge voltage/V: 55.2

Max. continue discharge current/A: 100

Max. pulse discharge current/A: 150A 1Sec.

Max. continue chargecurrent/A: 50

Operating conditions

Cycle life (+25℃ 0.2C 100%DOD): >6000 Cycles

Storage temperature: 0 to 30℃

Storage duration: 6 months at 25℃

Safety standard: UN38.3,IEC62619,CE

IP Degree: IP20
